Hydraulic Formulas & Principles

Understanding Hydraulic Principles

Hydraulics is a branch of science and engineering focused on the mechanical properties of liquids. It plays a critical role in various industries, including automotive, aerospace, manufacturing, and civil engineering. The principles of hydraulics are based on Pascal's Law, which states that pressure exerted anywhere in a confined incompressible fluid is transmitted equally in all directions throughout the fluid such that the pressure variations (initial differences) remain the same.

What are the principles of hydraulics? At its core, hydraulics leverages the incompressibility of liquids to transmit force and energy. By applying pressure to a fluid in a closed system, engineers can generate controlled motion, lift heavy loads, and perform precise operations. The relationship between pressure, flow, and force forms the basis of hydraulic system design.

Key Hydraulic Formulas

The following formulas are essential for hydraulic system analysis and design. They provide the mathematical framework for calculating critical parameters in pumps, motors, cylinders, and hydraulic circuits.

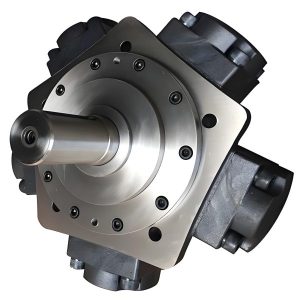

Geometric Flow (Pumps and Motors)

Geometric Flow (L/min) = \(\frac{\text{Geometric Displacement (cm}^3\text{/r)} \times \text{Shaft Speed (r/min)}}{1000}\)

This formula calculates the theoretical flow rate produced by a hydraulic pump or consumed by a hydraulic motor, based on their geometric displacement and shaft rotational speed.

Geometric Displacement: The volume of fluid displaced per revolution of the pump or motor.

Shaft Speed: The rotational speed of the pump or motor shaft.

What are the principles of hydraulics behind this formula? The geometric flow is a fundamental parameter in hydraulic systems, as it determines the rate at which fluid is moved through the system. By understanding this relationship, engineers can select appropriate pumps and motors for specific applications, ensuring that the system delivers the required flow rate at the designed operating speed.

Example Calculation:

If a pump has a geometric displacement of 50 cm³/r and operates at 1500 r/min, the geometric flow is:

Flow = (50 cm³/r × 1500 r/min) / 1000 = 75 L/min

Theoretical Torque (Pumps and Motors)

Theoretical Torque (N·m) = \(\frac{\text{Geometric Displacement (cm}^3\text{/r)} \times \text{Pressure (10}^6\text{Pa)}}{20\pi}\)

This formula determines the theoretical torque required to drive a hydraulic pump or produced by a hydraulic motor, based on their geometric displacement and the pressure differential across them.

Geometric Displacement: The volume of fluid displaced per revolution.

Pressure: The pressure differential across the pump or motor.

What are the principles of hydraulics involved in torque calculation? Torque in hydraulic systems is a result of the pressure acting on the displacement volume of the pump or motor. This formula helps in sizing motors and pumps, ensuring they can generate or handle the required torque at a given pressure, which is critical for applications requiring precise control of rotational force.

Example Calculation:

For a motor with a displacement of 80 cm³/r operating at 20 MPa:

Torque = (80 cm³/r × 20 MPa) / (20π) ≈ 25.46 N·m

Shaft Power

Shaft Power (kW) = \(\frac{\text{Torque (N·m)} \times \text{Shaft Speed (r/min)}}{9550}\)

This formula calculates the mechanical power transmitted by the shaft of a hydraulic pump or motor, considering both torque and rotational speed.

Torque: The rotational force applied to or produced by the shaft.

Shaft Speed: The rotational speed of the shaft.

What are the principles of hydraulics related to shaft power? Shaft power is a measure of the work done by the hydraulic system over time. It is essential for determining the power requirements of pumps and the output capabilities of motors. Efficient power transmission is a key consideration in hydraulic system design, and this formula helps engineers optimize the balance between torque and speed.

Example Calculation:

If a motor produces 30 N·m of torque at 1200 r/min:

Power = (30 N·m × 1200 r/min) / 9550 ≈ 3.77 kW

Hydraulic Power

Hydraulic Power (kW) = Flow (L/min) × Pressure (10⁶Pa) × 600

This formula computes the hydraulic power in a system, which is the product of flow rate and pressure, adjusted by a conversion factor to yield power in kilowatts.

Flow: The volumetric flow rate of the hydraulic fluid.

Pressure: The pressure of the hydraulic fluid.

What are the principles of hydraulics underlying hydraulic power? Hydraulic power represents the rate at which energy is transferred by the fluid in the system. It is a critical parameter for sizing components such as pumps, valves, and actuators, as it determines the system's capacity to perform work. Balancing flow and pressure is key to achieving efficient power transmission in hydraulic systems.

Example Calculation:

For a system with a flow rate of 60 L/min and pressure of 15 MPa:

Power = 60 × 15 × 600 = 5.4 kW

Heat Equivalent of Hydraulic Power

Heat Equivalent (kJ/min) = Flow (L/min) × Pressure (10⁶Pa) × 10

This formula calculates the heat generated by hydraulic power losses in a system, which is important for thermal management and cooling system design.

Flow: The volumetric flow rate of the hydraulic fluid.

Pressure: The pressure of the hydraulic fluid.

What are the principles of hydraulics related to heat generation? In any hydraulic system, energy losses due to friction and component inefficiencies are converted into heat. Understanding the heat equivalent of hydraulic power is crucial for preventing overheating, which can degrade fluid properties and damage system components. Proper cooling and thermal management are essential for maintaining system performance and longevity.

Example Calculation:

Given a flow rate of 80 L/min and pressure of 20 MPa:

Heat = 80 × 20 × 10 = 16,000 kJ/min

Geometric Flow (Cylinders)

Geometric Flow (L/min) = Effective Area (cm²) × Piston Speed (m/min) × 10

This formula determines the flow rate required to achieve a specified piston speed in a hydraulic cylinder, based on the cylinder's effective area.

Effective Area: The cross-sectional area of the piston on which the fluid pressure acts.

Piston Speed: The linear velocity of the piston.

What are the principles of hydraulics governing cylinder flow? The flow rate to a cylinder directly affects the speed of the piston. By controlling the flow, engineers can regulate the motion of hydraulic cylinders, which is essential for applications requiring precise linear movement, such as in construction equipment, manufacturing machinery, and aerospace systems.

Example Calculation:

For a cylinder with an effective area of 50 cm² and a piston speed of 0.5 m/min:

Flow = 50 × 0.5 × 10 = 25 L/min

Geometric Force (Cylinders)

Geometric Force (N) = Effective Area (cm²) × Pressure (10⁶Pa)

This formula calculates the theoretical force exerted by a hydraulic cylinder, based on the effective area of the piston and the fluid pressure.

Effective Area: The cross-sectional area of the piston.

Pressure: The pressure of the hydraulic fluid acting on the piston.

What are the principles of hydraulics behind cylinder force? The force generated by a hydraulic cylinder is a direct result of Pascal's Law, which states that pressure applied to an enclosed fluid is transmitted equally throughout the fluid. This principle allows hydraulic systems to generate significant forces with relatively small input pressures, making them ideal for heavy-duty applications.

Example Calculation:

For a cylinder with an effective area of 100 cm² and a pressure of 18 MPa:

Force = 100 × 18 = 18,000 N (or 18 kN)

Fluid Velocity in Pipes

Fluid Velocity (m/s) = \(\frac{\text{Flow (L/min)} \times 21.22}{1000D^2}\) (D = Pipe Inner Diameter, mm)

This formula calculates the velocity of hydraulic fluid flowing through a pipe, considering the flow rate and the internal diameter of the pipe.

Flow: The volumetric flow rate of the fluid.

D: The internal diameter of the pipe.

What are the principles of hydraulics related to fluid velocity? Fluid velocity in pipes is a critical consideration in hydraulic system design. Excessive velocity can cause increased friction losses, pressure drops, and cavitation, while insufficient velocity may lead to sedimentation and poor heat dissipation. Proper pipe sizing ensures optimal fluid velocity, balancing energy efficiency and system performance.

Example Calculation:

For a flow rate of 40 L/min in a pipe with an inner diameter of 25 mm:

Velocity = (40 × 21.22) / (1000 × 25²) ≈ 1.36 m/s

Applications of Hydraulic Formulas

Hydraulic formulas are used extensively in various industries and applications. Understanding these principles allows engineers to design efficient, reliable, and safe hydraulic systems.

Conclusion

Understanding hydraulic formulas and principles is fundamental to the design, analysis, and optimization of hydraulic systems. These formulas provide the mathematical framework for calculating critical parameters such as flow, pressure, torque, and power, enabling engineers to create efficient and reliable systems across various industries.

What are the principles of hydraulics that underpin these formulas? At the core of hydraulics is the transmission of force through incompressible fluids, governed by Pascal's Law. This principle allows hydraulic systems to multiply force and provide precise control, making them indispensable in modern engineering.

By applying these formulas, engineers can solve complex problems, optimize system performance, and ensure the safety and efficiency of hydraulic machinery and equipment. Whether designing a small-scale industrial actuator or a large-scale construction vehicle, a solid grasp of hydraulic principles is essential for success.
