Advanced Hydraulic Systems for Industrial Excellence

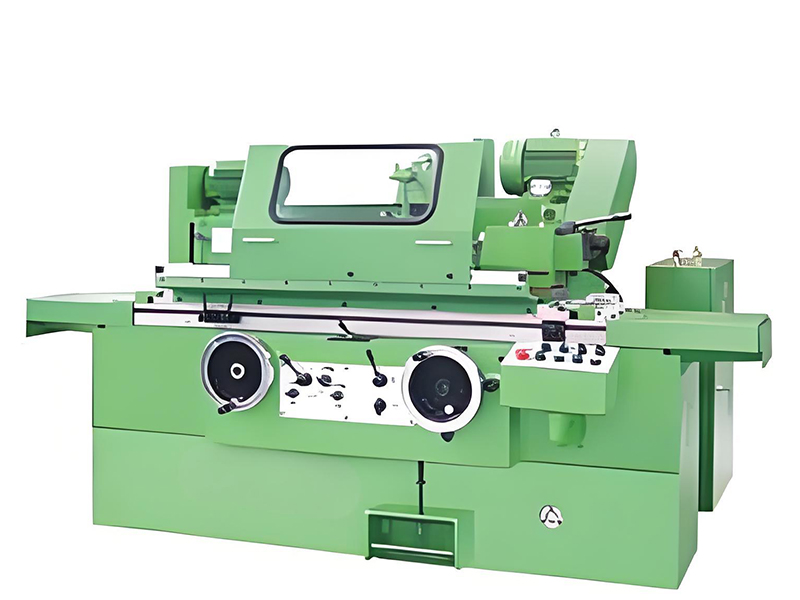

The hydraulic system in a universal cylindrical grinder represents one of the most precise applications of hydraulic equipment in manufacturing. These systems are engineered to deliver micron-level positioning accuracy essential for achieving the tight tolerances required in precision grinding operations.

A typical system comprises a variable displacement pump, precision flow control valves, servo valves, and specialized actuators that drive the grinder's工作台, wheelhead, and dressing mechanisms. The integration of hydraulic equipment in these machines provides several key advantages, including smooth motion control, consistent force application, and rapid response to control signals.

The hydraulic circuit in these grinders is designed with separate loops for different functions: the feed system, which controls the longitudinal and cross feeds; the rapid traverse system, which moves components between work positions; and the wheelhead system, which maintains optimal pressure between the grinding wheel and workpiece.

Pressure compensation is critical in these systems, with operating pressures typically ranging from 10 to 20 MPa. This ensures that the grinding forces remain consistent even as wheel wear occurs, maintaining dimensional accuracy throughout the production run. Advanced hydraulic equipment in modern grinders incorporates electronic proportional control valves that interface with CNC systems, enabling complex grinding cycles and automatic compensation for thermal expansion.

Maintenance of these hydraulic systems focuses on maintaining oil cleanliness, as even minute contaminants can cause wear in precision components and degrade performance. Regular oil analysis, filter replacement, and system flushing are essential to maximize the service life of the hydraulic equipment and maintain the grinder's precision capabilities.

Energy efficiency has become a key focus in modern designs, with variable speed drives and load-sensing pumps reducing power consumption during idle periods. This not only lowers operating costs but also reduces heat generation, extending the life of hydraulic fluids and components in the hydraulic equipment array.

Construction machinery represents some of the most demanding applications for hydraulic equipment, operating in harsh environments while delivering immense power for excavation, lifting, and material handling. These hydraulic systems are designed for maximum durability, high power density, and reliable performance under extreme conditions.

At the heart of construction machinery hydraulic systems are large displacement pumps capable of delivering high flow rates at pressures typically ranging from 25 to 35 MPa. These pumps supply pressurized fluid to a variety of actuators – hydraulic cylinders for linear motion and hydraulic motors for rotational movement – that form the working components of the machinery.

One of the defining characteristics of construction hydraulic equipment is its ability to perform multiple functions simultaneously. Advanced control systems manage flow distribution between different actuators, allowing operators to combine movements (such as lifting and extending a boom) with precise proportional control.

Mobile hydraulic systems in construction equipment must contend with varying operating conditions, including extreme temperatures, vibration, and contamination. This necessitates robust design features in all hydraulic equipment components, including heavy-duty seals, reinforced hoses, and advanced filtration systems capable of maintaining fluid cleanliness even in dusty environments.

Modern construction machinery incorporates intelligent hydraulic systems with electronic controls that optimize performance based on operating conditions. These systems can adjust pump output, modify pressure settings, and coordinate actuator movements to maximize efficiency while protecting hydraulic equipment from damage due to overloads or cavitation.

Energy recovery systems have become increasingly common in construction hydraulic equipment, capturing energy during boom lowering or braking and reusing it to assist in subsequent movements. This technology significantly improves fuel efficiency and reduces operating costs.

Maintenance of construction hydraulic systems focuses on contamination control, proper fluid levels, and regular inspection of hoses and connections. The harsh operating environment makes proactive maintenance essential to prevent costly failures of hydraulic equipment in the field, where repair costs and downtime can be substantial.

Safety systems are integral to these hydraulic setups, including load-sensing valves that prevent overloading, pressure relief valves to protect components, and emergency stop circuits that can deactivate hydraulic equipment in critical situations.

The electro-hydraulic proportional control system represents the pinnacle of precision in elevator technology, combining the power density of hydraulic equipment with electronic control systems to deliver smooth, efficient, and safe vertical transportation for both passengers and cargo.

These systems differ from conventional hydraulic elevators through their use of proportional control valves that modulate flow rates based on electronic signals, rather than simple on/off valves. This allows for precise speed control, smoother acceleration and deceleration, and more accurate floor leveling – advantages that make this hydraulic equipment configuration ideal for passenger applications while maintaining the cargo-handling capabilities of traditional hydraulic elevators.

The core of the system consists of a variable displacement pump or a fixed-displacement pump paired with proportional flow control valves. This hydraulic equipment is controlled by a microprocessor-based controller that receives input from position sensors, load cells, and user controls. The controller adjusts the hydraulic output in real-time to maintain optimal performance under varying load conditions.

One of the key advantages of electro-hydraulic proportional systems is their energy efficiency. By precisely matching hydraulic power output to actual demand, these systems consume significantly less energy than conventional designs. Regenerative features can capture energy during descent, further improving efficiency and reducing operating costs associated with the hydraulic equipment.

Safety systems are highly sophisticated in these elevators, with multiple redundant sensors monitoring position, speed, pressure, and load. The electronic controller continuously evaluates data from these sensors, capable of adjusting the hydraulic equipment operation or initiating a safe shutdown if any parameters fall outside acceptable ranges.

Ride quality is a primary focus in these systems, with the proportional control allowing for precise velocity profiling. Acceleration and deceleration rates are carefully controlled to minimize passenger discomfort, while advanced algorithms compensate for load variations to maintain consistent performance whether the elevator is empty or fully loaded with passengers and cargo.

Maintenance of these advanced hydraulic equipment systems benefits from built-in diagnostic capabilities. The controller monitors system performance, logs faults, and can alert maintenance personnel to potential issues before they result in downtime. This predictive maintenance capability significantly reduces service costs and improves reliability.

Installation flexibility is another advantage of these hydraulic elevator systems, as they do not require a separate machine room and can be installed in spaces with limited overhead clearance. This makes them particularly suitable for retrofitting into existing buildings where traditional traction elevators would be difficult to install.

The integration of electronic controls with hydraulic equipment also enables advanced features such as remote monitoring, self-testing routines, and integration with building management systems. These capabilities contribute to the overall efficiency, safety, and convenience of the elevator system.
